THERMAL CH + DHW

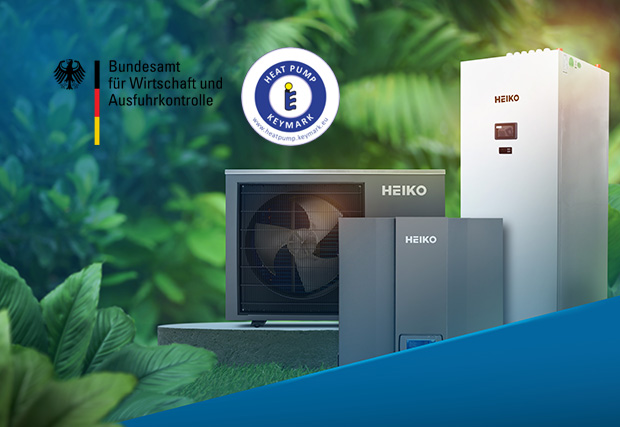

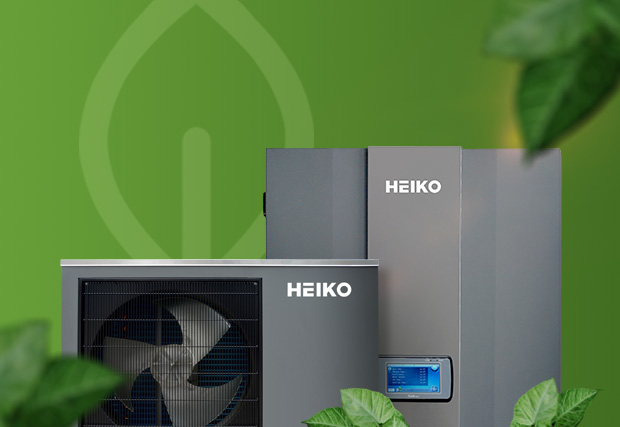

THERMAL monoblock heat pumps are energy efficient devices which draw energy from the air and use it to heat or cool the building and prepare heat utility water. They can be used in single- family houses as well as commercial buildings. Heiko’s heat pumps are advanced devices, which guarantee efficient and safe operation.
THERMAL heat pumps are KEYMARK certified. It is a European mark confirming the conformity of products and services with European standards. Whilst the CE marking proves compliance with minimum legal requirements, KEYMARK provides the consumer with a real added value: tested and certified adherence to uniform European Quality Standards.
A product can only be KEYMARKed if it has been previously tested and certified by a neutral, independent and competent body.
Heiko heat pumps are included on the German BAFA funding list. They constitute a key element of Germany’s strategy for sustainable energy production and environmental protection. Due to their high efficiency and minimal impact on the natural environment, they present an attractive alternative to traditional heating systems based on fossil fuel combustion. Therefore, when purchasing them, one can expect attractive financial incentives from German government programs.
Thanks to the available funding programs, Germany is becoming an increasingly attractive market for the development and utilization of heat pumps. The tremendous success of the BAFA funding program only confirms this. HEIKO is a proven choice in the European market.

Two heating circuits
A standard THERMAL heat pump can be confi gured to supply different heat loads
at the same time, like a radiator space heating system and an underfl oor heating
system. With two heating circuits, the temperature in different heat loads can be
managed separately; in practical terms, different temperature settings can be made
for the radiators and the underfl oor heating.

Wide temperature range – reliable operation in all conditions
The Heiko heat pumps are reliable units which operate from -25°C outdoors and can
heat DHW to 55°C.

Wi-Fi control
The standard Wi-Fi control available improves the comfort of operating the Heiko heat
pumps. An easy and intuitive app for mobile devices lets you monitor the unit status,
display the current energy consumption, and modify the temperature settings.

Modern control panel
The integrated control panel enables easy and quick changing of operating parameters. The controller menu is available in several language versions.

Silent operation
The Heiko THERMAL heat pumps have DC motor fans, a well sound-insulated refrigerant compressor, and an optimised air fan design to ensure very quiet operation already at 52 dB(A). The units can also run in a quiet mode for improved comfort at work or while resting.

Automatic weather control
The Heiko THERMAL heat pumps operate in an automatic process controlled by weather temperature curves. In practice, this means that the heat pump operation is adapted automatically to actual weather conditions without any human intervention.

Frequency converter technology
Frequency converter technology allows cost-effi cient operation of the heat pump
without sudden voltage frequency surges of the compressor. This provides energyeffi
cient and quiet operation. The units have A+++ energy rating.
-
Technical Data
Model HEIKO THERLMAL 6 HEIKO THERMAL 9 HEIKO THERMAL 12 HEIKO THERMAL 15 HEIKO THERMAL 19 Seasonal energy efficiency rating, space heating, temperate
climateLWT = 35°C A+++ A+++ A+++ A+++ A+++ LWT = 55°C A++ A++ A++ A++ A++ Rated heat capacity, including all auxiliary heating units,
temperate climate (-10°C)LWT = 35°C kW 4 6 8 12 16 LWT = 55°C 4 6 7 10 15 Indoor sound power level dB(A) 44 34 44 44 44 Outdoor sound power level dB(A) 52 52 52 59 61 Annual energy consumption with regard to final energy amount
– cold climateLWT = 35°C kWh 2071 3149 4020 7020 8825 LWT = 55°C 3089 4100 4112 7910 9930 Annual energy consumption with regard to final energy amount
– warm climateLWT = 35°C kWh 1710 3094 3480 6243 8105 LWT = 55°C 2550 3510 3560 6913 8590 Heat pump unit power supply V/Ph/Hz 220-240/1/50 220-240/1/50 220-240/1/50 380-420/3/50 380-420/3/50 Heating (LWT = 35°C)
(Outdoor temperature 7°C, 85% RH, EWT 30°C, LWT 35°C)kW 6,1 7,8 10,1 13 18,5 COP 3,8 3,87 3,9 4 4,47 Cooling (LWT = 18°C)
(Outdoor temperature 35°C , EWT 23°C, LWT 18°C)kW 7,45 9,5 9,8 18,6 22,5 EER 4,05 4,23 3,9 4 7,35 Cooling (LWT = 7°C)
Outdoor temperature 35°C , EWT 12°C, LWT 7°C)kW 7.45 9.5 9.8 13,1 15,8 EER 4.05 4.23 3.9 3 2,94 Dimensions of the indoor unit (W x H x D) net/gross mm 570x550x260 / 620x600x310 570x550x260 / 620x600x310 570x550x260 / 620x600x310 570x550x260 / 620x600x310 570x550x260 / 620x600x310 Dimensions of the outdoor unit (W x H x D) net/gross mm 700x1010x370 / 750x1060x420 845x1165x370 / 900x1200x420 845x1165x370 / 900x1200x420 1450x1085x390 / 1500x1185x400 1450x1085x390 / 1500x1185x400 Refrigerant Type / amount of gas kg R32 / 0,9 R32 / 1,4 R32 / 1,8 R32 / 2,55 R32 / 2,6
