BRISA wall-mounted units
MULTI SPLIT
Wi-Fi control
The Wi-Fi control in standard enables controlling the air conditioner with a telephone connected to the Internet from any place. The comfortable and intuitive Wi-Fi INTELLIGENT AIR app enables access to all basic settings of the air conditioner.

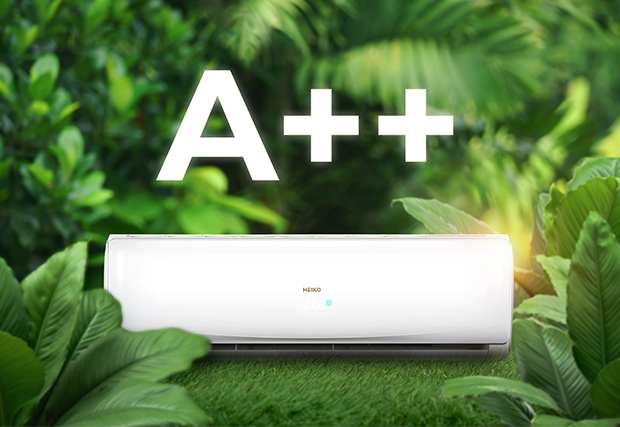

High energy efficiency
Innovative solutions enabled a significant reduction of energy consumption in both cooling and heating mode. The appliances have A++/A+ energy rating.

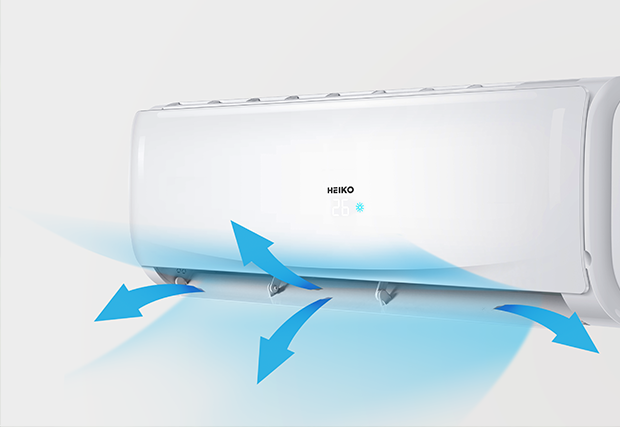

SMART airflow
An innovative solution for airflow control. The stream is directed upwards during the cooling and downwards during the heating, which enables an even distribution of air, thus preventing direct airflow on the user.
Quiet operation
The components comprising the air conditioner and the optimum airflow system ensure quiet operation for comfort during work and leisure.
TURBO MODE
ONE-TOUCH FULL POWER
SLEEP FUNCTION
MAKE YOUR SLEEP COMFORTABLE
MODE:
COOLING HEATING DRYING FAN AUTO
-
Technical Data
Indoor unit JS025-C2 JS035-C2 JS050-C2 Rated capacity Cooling kW 2,6 3,2 5,0 Heating kW 2,8 3,4 5,2 Parametry elektryczne Power supply f/V/Hz 1/220-240/50 1/220-240/50 1/220-240/50 Electrical data Airflow m³/h 500 550 900 Sound power level dB(A) 54 56 57 Sound pressure level dB(A) 37/33/29/19 38/34/29/20 44/40/35/28 Performance Dimensions without packaging (W x D x H) mm 820/195/280 820/195/280 1008/225/318 Dimensions with packaging (W x D x H) mm 909/279/355 909/279/355 1085/329/403 Net/gross weight kg 8,2/10,5 8,2/10,5 11,6/14.4 Diameter of liquid pipe mm 6,35 6,35 6,35 Diameter of gas pipe mm 9,52 9,52 12,7 Controller Standard YR-HAC01 YR-HAC01 YR-HAC01
